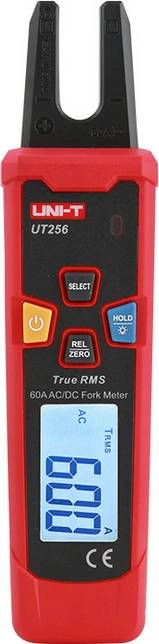

UT256 60A AC/DC Fork Meter

UT256 is a CAT III 600V auto-ranging True RMS fork meter that measures 60A AC/DC current. It can detect the presence of voltage via the integrated non-contact voltage (NCV) sensor on the tip of the fork. The easy-to-use interface with bright backlight can help users finish the work efficiently and conveniently. The specially designed slim meter shell and thin fork are quite useful for cable measuring in narrow spaces. The meter comes with two 1.5V AAA batteries that can easily be changed, and the easy-access door is built for fast battery changes.

Features of UT256 60A AC/DC Fork Meter
Certificates: CE, UKCA, cETLus

● 60A AC/DC current measurement
● True-RMS
● Jaw opening: 10mm
● Zero function

● Data hold
● Relative mode
● NCV
● CAT III 600V

Specifications of UT256 60A AC/DC Fork Meter
Specifications Range UT256
DC current (A) 60A ±(2%＋5)
AC current (A) 60A ±(2%＋5)
Features
NCV√
Low battery indication√
Data hold√
Relative mode√
Zero mode√
Backlight√
Audible and visual alarm√
Auto power off Approximately 30 minutes √
Drop test1m
Safety ratingCAT III 600V
General Characteristics
Power AAA 1.5V x2
Product color Red+Gray
Product net weight 120g (Including batteries)
Product size 171x 42x 28mm
Standard accessories English manual, test leads, batteries, strap string
Standard individual packing Gift box, carrying bag
